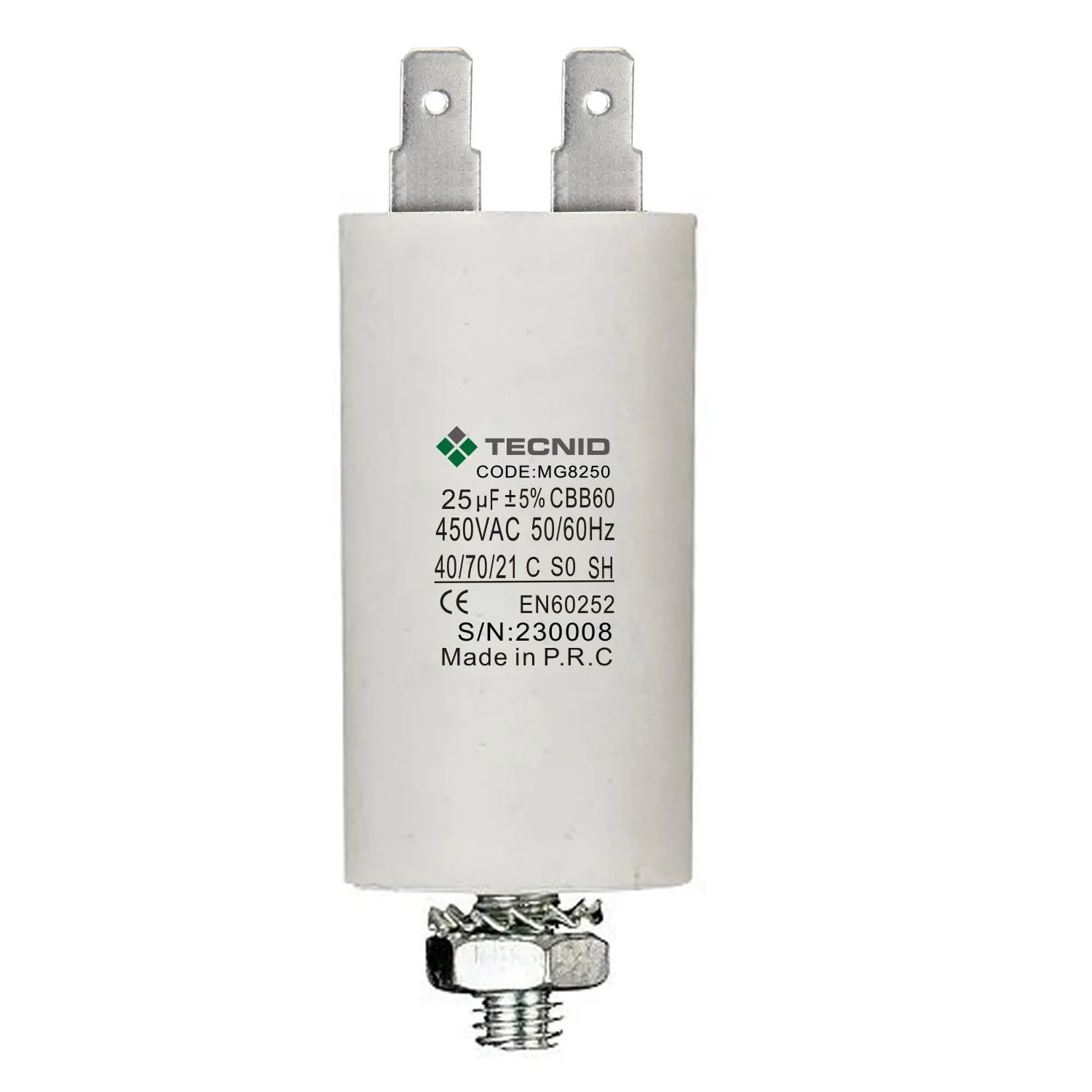

TECNID Electric Motor Starting Capacitor 450V Capacity 25µF Round Aluminium Plastic Capacitor
TECNID Electric Motor Starting Capacitor 450V Capacity 25µF Round Aluminium Plastic Capacitor
Capacity: 25µF. Voltage: 450 V. External dimensions (diameter x height): 4095 mm. Electrical connection via 6.4 x 0.8 mm Faston connectors. Mechanical fixing via threaded screw and M8 nut. Tolerance 5%. Lifespan: 3000 hours. Operating temperature: -40°C ~ +70°C. The round white capacitor is designed for continuous operation. The main application of this type of capacitors is in single-phase motors and they can also be used in circuits, damping applications and general applications.
Product Features
- Capacity: 25F. Voltage: 450 V
- Dimensions (diameter x height): 40 x 95 mm.
- Electrical connection via 6.4 x 0.8 mm blade connections. Mechanical attachment via threaded rod and M8 nut.
- Tolerance 5%. Lifespan: 3000 hours Working temperature: -40C ~ +70C.
- The white round capacitor is designed for continuous operation. The main application of this type of condenser is in single-phase motors and it can also be used in circuits, damping circuits and general applications.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TECNID Electric Motor Starting Capacitor 450V Capacity 25µF Round Aluminium Plastic Capacitor
Capacity: 25µF. Voltage: 450 V. External dimensions (diameter x height): 4095 mm. Electrical connection via 6.4 x 0.8 mm Faston connectors. Mechanical fixing via threaded screw and M8 nut. Tolerance 5%. Lifespan: 3000 hours. Operating temperature: -40°C ~ +70°C. The round white capacitor is designed for continuous operation. The main application of this type of capacitors is in single-phase motors and they can also be used in circuits, damping applications and general applications.
Product Features
- Capacity: 25F. Voltage: 450 V
- Dimensions (diameter x height): 40 x 95 mm.
- Electrical connection via 6.4 x 0.8 mm blade connections. Mechanical attachment via threaded rod and M8 nut.
- Tolerance 5%. Lifespan: 3000 hours Working temperature: -40C ~ +70C.
- The white round capacitor is designed for continuous operation. The main application of this type of condenser is in single-phase motors and it can also be used in circuits, damping circuits and general applications.
