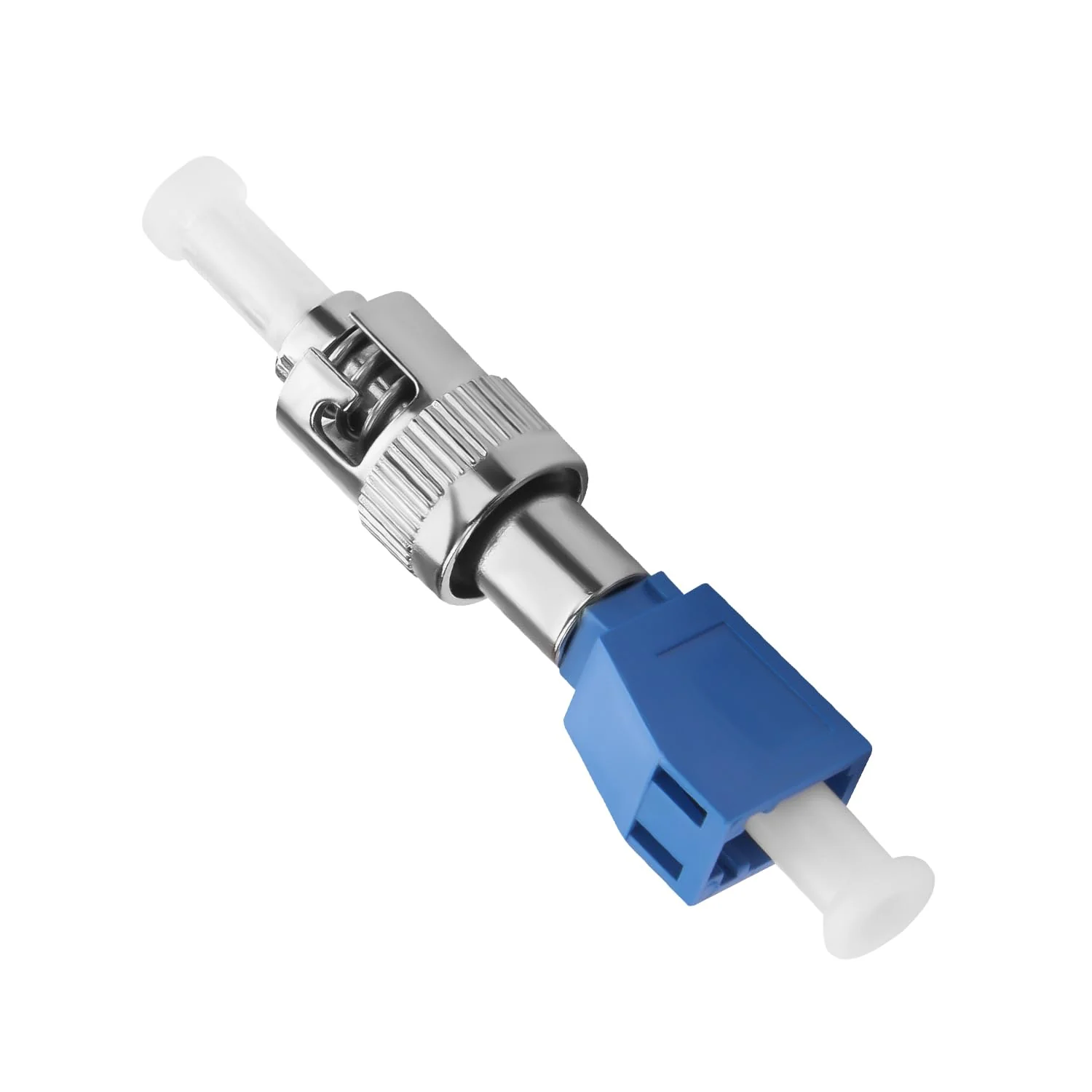

QIANRENON ST Male to LC Female Hybrid Fiber Optic Converter SM 9/125μm ST/UPC Male to LC/UPC Female Single Mode Fiber Optic Adapter Coupler for Red Light Pen Optical Power Meter Patch Cord Pigtail

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

QIANRENON ST Male to LC Female Hybrid Fiber Optic Converter SM 9/125μm ST/UPC Male to LC/UPC Female Single Mode Fiber Optic Adapter Coupler for Red Light Pen Optical Power Meter Patch Cord Pigtail

QIANRENON ST Male to LC Female Hybrid Fiber Optic Converter SM 9/125μm ST/UPC Male to LC/UPC Female Single Mode Fiber Optic Adapter Coupler for Red Light Pen Optical Power Meter Patch Cord Pigtail

SM 9/125um ST male to LC female hybrid fiber optic converter adapter converts ST and FC fiber optic interfaces to each other. Used for adapting 9/125um FC and LC single mode fibers, suitable for both 1310nm and 1550nm bands.ST and FC fiber interfaces are terminated with UPC contacts, recommended to be connected with ST/UPC and LC/UPC optical fiber patchcord pigtails.ST plug to LC socket for FTTH, FTTP, FTTA, LAN, Fiber Optic Broadband CATV, Red Light Pen optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN, etc. Port A: ST / UPC malePort B: LC / UPC femaleContacts: ST/UPC, LC/UPCTransmission: 9/125μm single mode fiberInsertion Loss: 1310nm 0.12dB/1550nm 0.04dBReturn loss: 1310nm 53.3dB/1550nm 52.3dBCore material: zirconia ceramicPackage: 1ST/UPC to LC/UPC single mode fiber simplex coupler

Product Features

  • ST to LCST/UPC male to LC/UPC female Single mode fiber optic adapter coupler, will ST and FC fiber optic interface conversion.
  • Single Mode SimplexSM 9/125m ST to LC Single Mode Simplex Fiber Optic Adapter Converter for 9/125um FC and LC Single Mode Fiber, suitable for both 1310nm and 1550nm bands.
  • Insertion/Return LossST/UPC Male to LC/UPC Female Hybrid fiber optic connector coupler.Insertion loss: 1310nm 0.12dB/1550nm 0.04dB,Return loss: 1310nm 53.3dB/1550nm 52.3dB.
  • UPC ContactsST/UPC male to LC/UPC female Single mode simplex fiber optic interface adapter, ST and FC fiber optic interface end face are used UPC contacts, recommended to connect with ST/UPC and LC/UPC fiber optic patch cord pigtail
  • ApplicationST plug to LC socket Hybrid fiber optic connector converter.for FTTH, FTTP, FTTA, LAN, fiber optic broadband CATV, red light pen, optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN.
$68.59
QIANRENON ST Male to LC Female Hybrid Fiber Optic Converter SM 9/125μm ST/UPC Male to LC/UPC Female Single Mode Fiber Optic Adapter Coupler for Red Light Pen Optical Power Meter Patch Cord Pigtail—
$68.59

Product Information

Shipping & Returns

Description

QIANRENON ST Male to LC Female Hybrid Fiber Optic Converter SM 9/125μm ST/UPC Male to LC/UPC Female Single Mode Fiber Optic Adapter Coupler for Red Light Pen Optical Power Meter Patch Cord Pigtail

SM 9/125um ST male to LC female hybrid fiber optic converter adapter converts ST and FC fiber optic interfaces to each other. Used for adapting 9/125um FC and LC single mode fibers, suitable for both 1310nm and 1550nm bands.ST and FC fiber interfaces are terminated with UPC contacts, recommended to be connected with ST/UPC and LC/UPC optical fiber patchcord pigtails.ST plug to LC socket for FTTH, FTTP, FTTA, LAN, Fiber Optic Broadband CATV, Red Light Pen optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN, etc. Port A: ST / UPC malePort B: LC / UPC femaleContacts: ST/UPC, LC/UPCTransmission: 9/125μm single mode fiberInsertion Loss: 1310nm 0.12dB/1550nm 0.04dBReturn loss: 1310nm 53.3dB/1550nm 52.3dBCore material: zirconia ceramicPackage: 1ST/UPC to LC/UPC single mode fiber simplex coupler

Product Features

  • ST to LCST/UPC male to LC/UPC female Single mode fiber optic adapter coupler, will ST and FC fiber optic interface conversion.
  • Single Mode SimplexSM 9/125m ST to LC Single Mode Simplex Fiber Optic Adapter Converter for 9/125um FC and LC Single Mode Fiber, suitable for both 1310nm and 1550nm bands.
  • Insertion/Return LossST/UPC Male to LC/UPC Female Hybrid fiber optic connector coupler.Insertion loss: 1310nm 0.12dB/1550nm 0.04dB,Return loss: 1310nm 53.3dB/1550nm 52.3dB.
  • UPC ContactsST/UPC male to LC/UPC female Single mode simplex fiber optic interface adapter, ST and FC fiber optic interface end face are used UPC contacts, recommended to connect with ST/UPC and LC/UPC fiber optic patch cord pigtail
  • ApplicationST plug to LC socket Hybrid fiber optic connector converter.for FTTH, FTTP, FTTA, LAN, fiber optic broadband CATV, red light pen, optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN.
