Nano V3.0 Board with Cable, AYWHP 3PCS Nano Board ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino Nano (Mini USB Port) 3
Nano V3.0 Board with Cable, AYWHP 3PCS Nano Board ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino Nano (Mini USB Port)
Product Features
- The Nano is using the chips ATmega328P and CH340, not FT232 as official Arduino. It works just like the original Nano board and is very cost-effective for beginners.

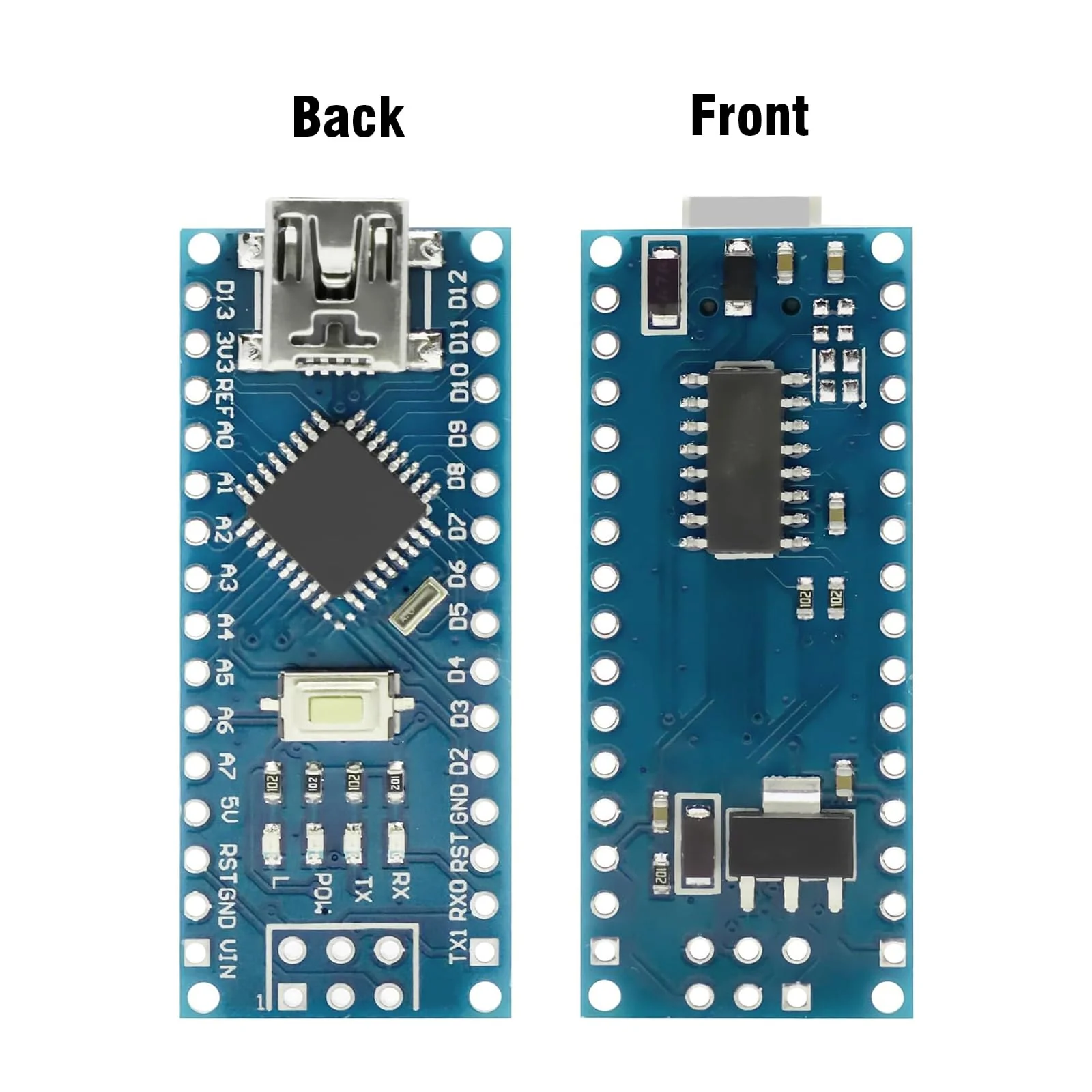

- Uses atmega328p-AU as MCU, support ISP download; Support USB download and power supply. Compatible with Arduino Nano, fully compatible with Windows, Mac and Linux operating systems.
- The Nano board can be powered via a mini USB connection; 6-12 V unregulated external power supply or 5 V regulated external power supply. The Nano automatically detects and switches to the power source with higher potential, no power selection jumper is required.

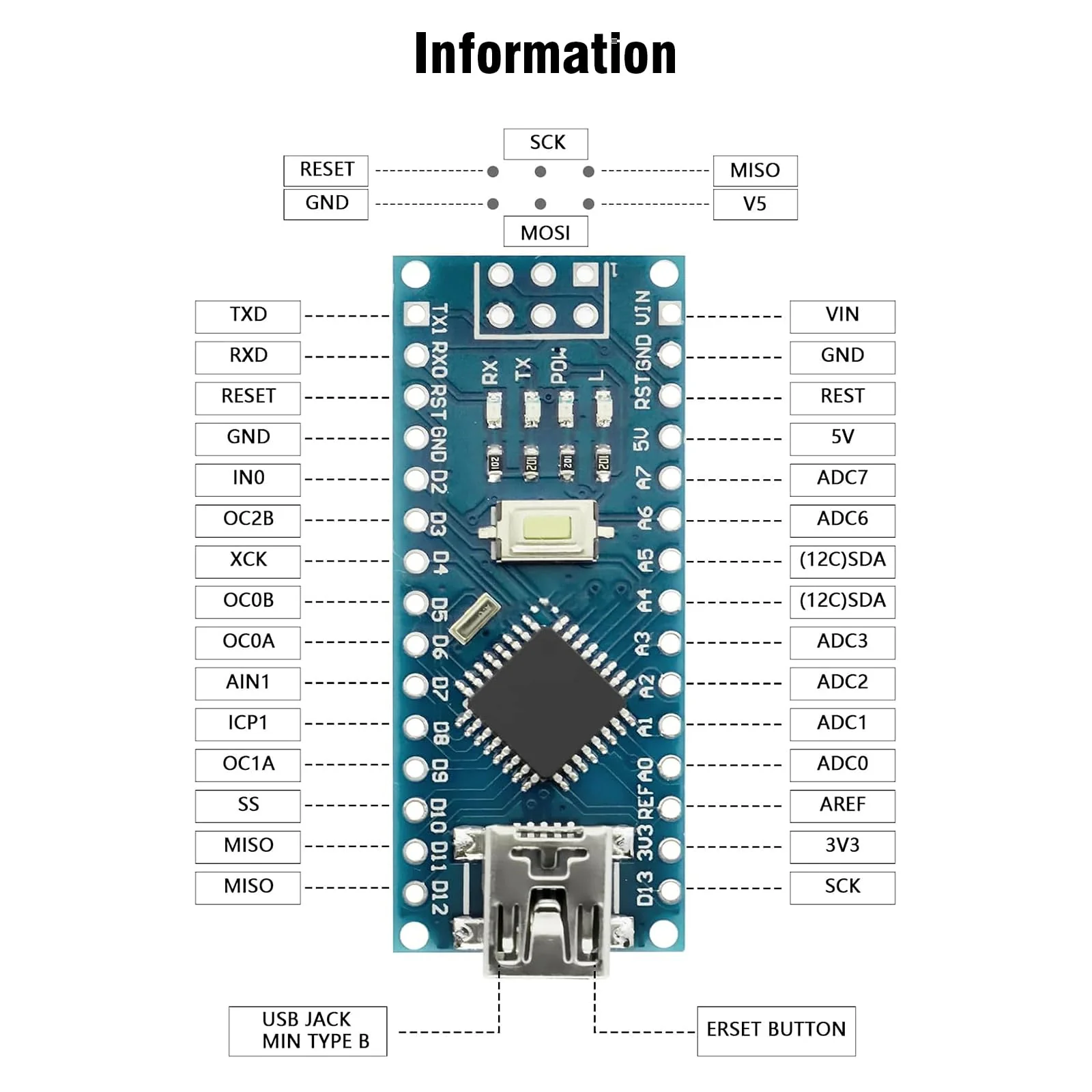

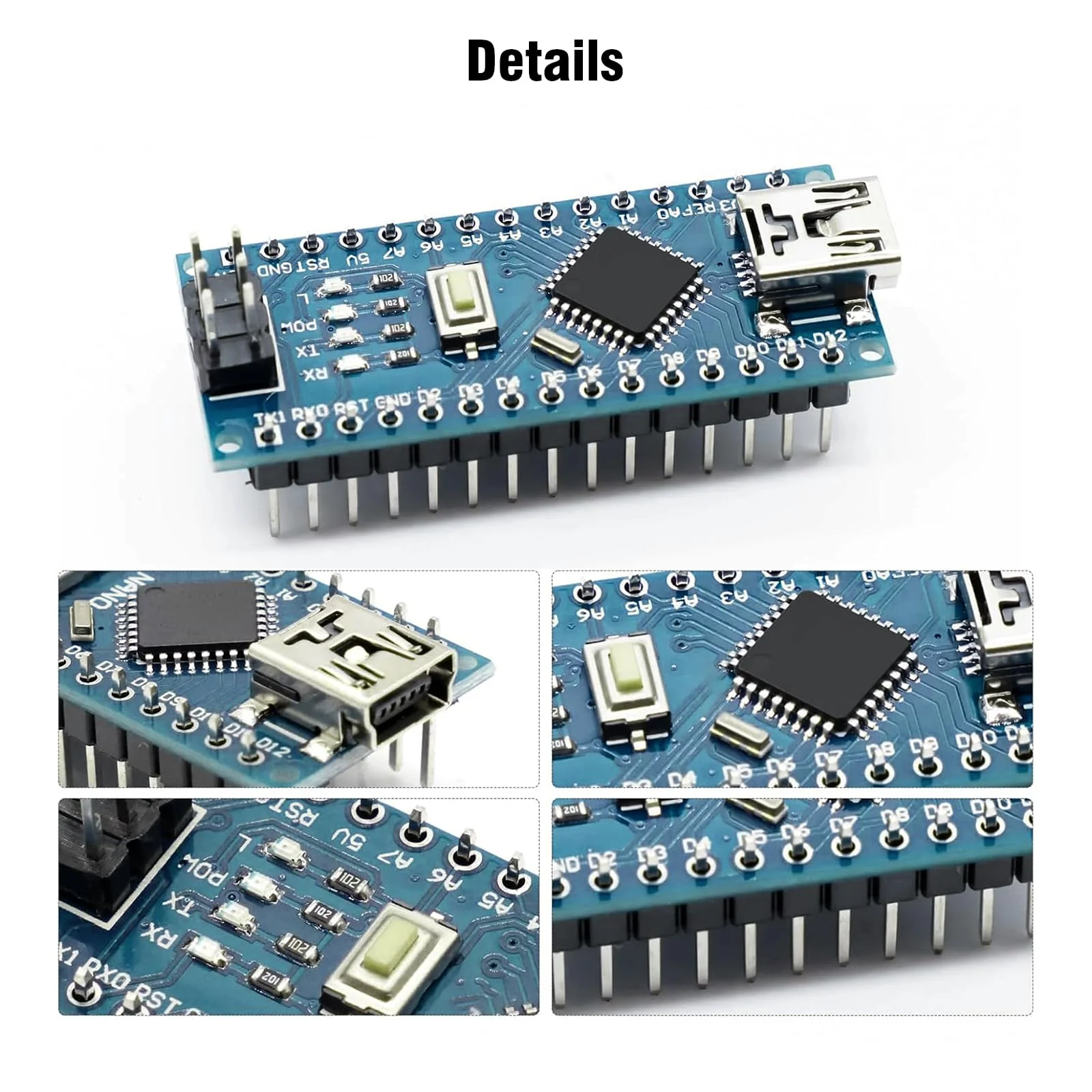

- The Nano board has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a mini USB power socket, an ICSP port and a reset button.
- The Nano board has numerous possibilities for communication with a PC or other microcontrollers and is fully compatible with the operating systems Windows, Mac and Linux. This board is particularly breadboard friendly and the connections are very easy to handle.
$25.72
Original: $73.49
-65%Nano V3.0 Board with Cable, AYWHP 3PCS Nano Board ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino Nano (Mini USB Port) 3—
$73.49
$25.72Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Nano V3.0 Board with Cable, AYWHP 3PCS Nano Board ATmega328P, CH340G Chip 5V 16M, Microcontroller Compatible with Arduino Nano (Mini USB Port)
Product Features
- The Nano is using the chips ATmega328P and CH340, not FT232 as official Arduino. It works just like the original Nano board and is very cost-effective for beginners.
- Uses atmega328p-AU as MCU, support ISP download; Support USB download and power supply. Compatible with Arduino Nano, fully compatible with Windows, Mac and Linux operating systems.
- The Nano board can be powered via a mini USB connection; 6-12 V unregulated external power supply or 5 V regulated external power supply. The Nano automatically detects and switches to the power source with higher potential, no power selection jumper is required.
- The Nano board has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a mini USB power socket, an ICSP port and a reset button.
- The Nano board has numerous possibilities for communication with a PC or other microcontrollers and is fully compatible with the operating systems Windows, Mac and Linux. This board is particularly breadboard friendly and the connections are very easy to handle.
