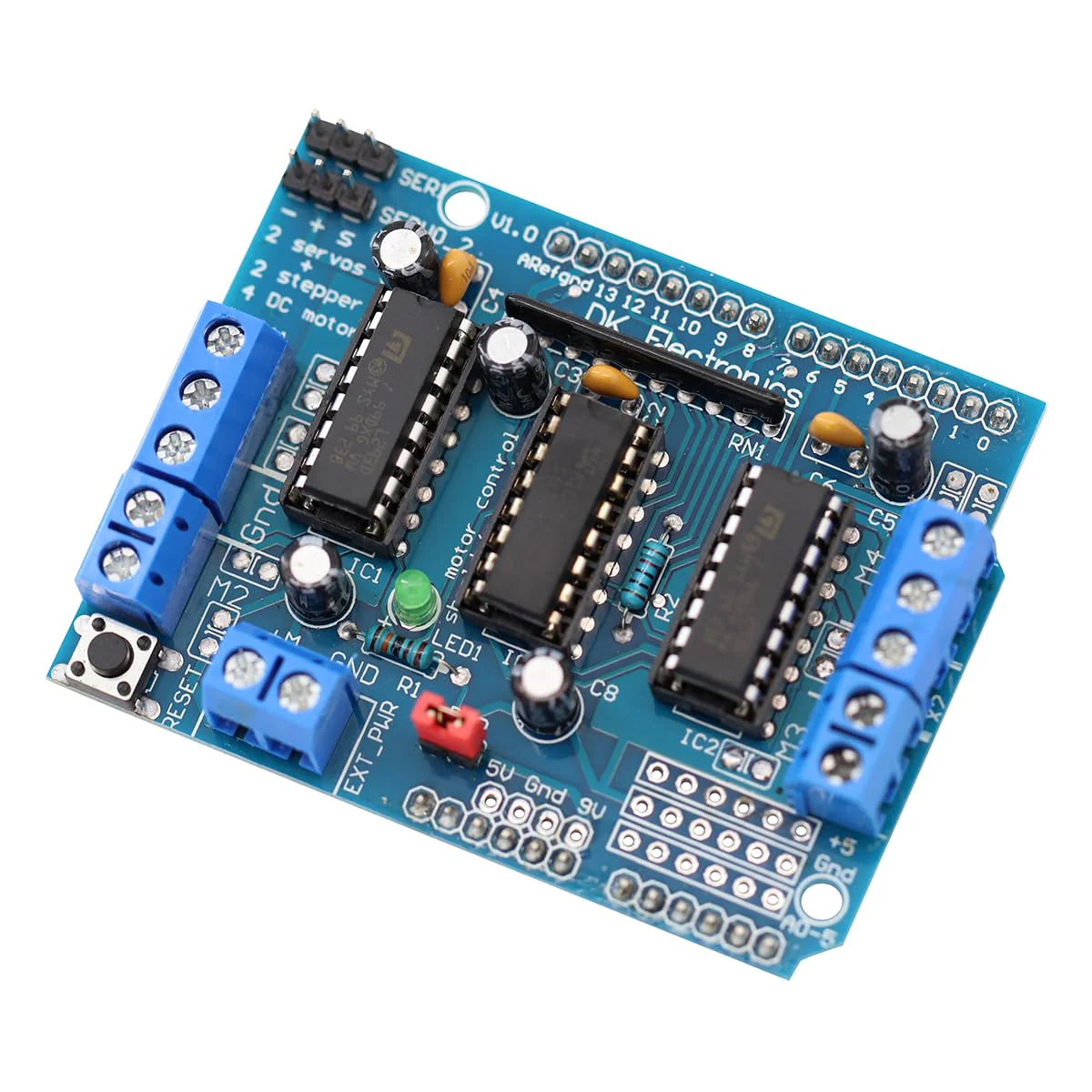

Heevhas L293D DC Motor Driver Expansion Card Stepper Motor Driver Stepper Expansion Board Motor Driver Shield (Pack of 2)
Heevhas L293D DC Motor Driver Expansion Card Stepper Motor Driver Stepper Expansion Board Motor Driver Shield (Pack of 2)
Functions: 2 5V servo motor connections connected with high definition, high precision timer, no jitter. Up to 4 bi-directional DC motors and 4-way PWM speed control (approx. 0.5% resolution). Up to 2 stepper motors with forward and reverse control, single/double step control, offset or micro step and rotation angle control. H Bridge The L293D chip delivers 0.6A (peak value 1.2A) current per bridge and has thermal power protection, 4.5V to 36V. A pull-down resistor ensures that the motor remains stopped when power is supplied. Large terminal block facilitates wiring (10-22AWG) and power supply. With reset button. 2 large terminals for external power supply ensure the separation of logic and motor drive power. Package includes: 2XL293D DC Motor Driver Expansion Card Stepper Motor Driver
Product Features
- Product introduction: This is a commonly used DC motor drive module that uses a power-saving 293 chip DC motor driver chip.
- Functions: This chip allows the use of DC motors and power supplies with up to 10 volts, some fairly large motors, and the chip can provide a maximum current of 600 mA per channel.
- Advantages: Multifunctional, easy to use, strong driver library support and function updates.
- Interface connection: 2 interfaces for 5V servo, connected to the Arduino high-resolution dedicated timer, no jitter.
- 4 H bridges: Each bridge delivers 0.6A (1.2A peak current) with heat protection, motors can be powered from 4.5V to 36V DC. With individual 8-bit speed preset, can drive 4 DC motors or 2 stepper motors or 2 servo motors.
Original: $82.59
-65%$82.59
$28.91Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Heevhas L293D DC Motor Driver Expansion Card Stepper Motor Driver Stepper Expansion Board Motor Driver Shield (Pack of 2)
Functions: 2 5V servo motor connections connected with high definition, high precision timer, no jitter. Up to 4 bi-directional DC motors and 4-way PWM speed control (approx. 0.5% resolution). Up to 2 stepper motors with forward and reverse control, single/double step control, offset or micro step and rotation angle control. H Bridge The L293D chip delivers 0.6A (peak value 1.2A) current per bridge and has thermal power protection, 4.5V to 36V. A pull-down resistor ensures that the motor remains stopped when power is supplied. Large terminal block facilitates wiring (10-22AWG) and power supply. With reset button. 2 large terminals for external power supply ensure the separation of logic and motor drive power. Package includes: 2XL293D DC Motor Driver Expansion Card Stepper Motor Driver
Product Features
- Product introduction: This is a commonly used DC motor drive module that uses a power-saving 293 chip DC motor driver chip.
- Functions: This chip allows the use of DC motors and power supplies with up to 10 volts, some fairly large motors, and the chip can provide a maximum current of 600 mA per channel.
- Advantages: Multifunctional, easy to use, strong driver library support and function updates.
- Interface connection: 2 interfaces for 5V servo, connected to the Arduino high-resolution dedicated timer, no jitter.
- 4 H bridges: Each bridge delivers 0.6A (1.2A peak current) with heat protection, motors can be powered from 4.5V to 36V DC. With individual 8-bit speed preset, can drive 4 DC motors or 2 stepper motors or 2 servo motors.
