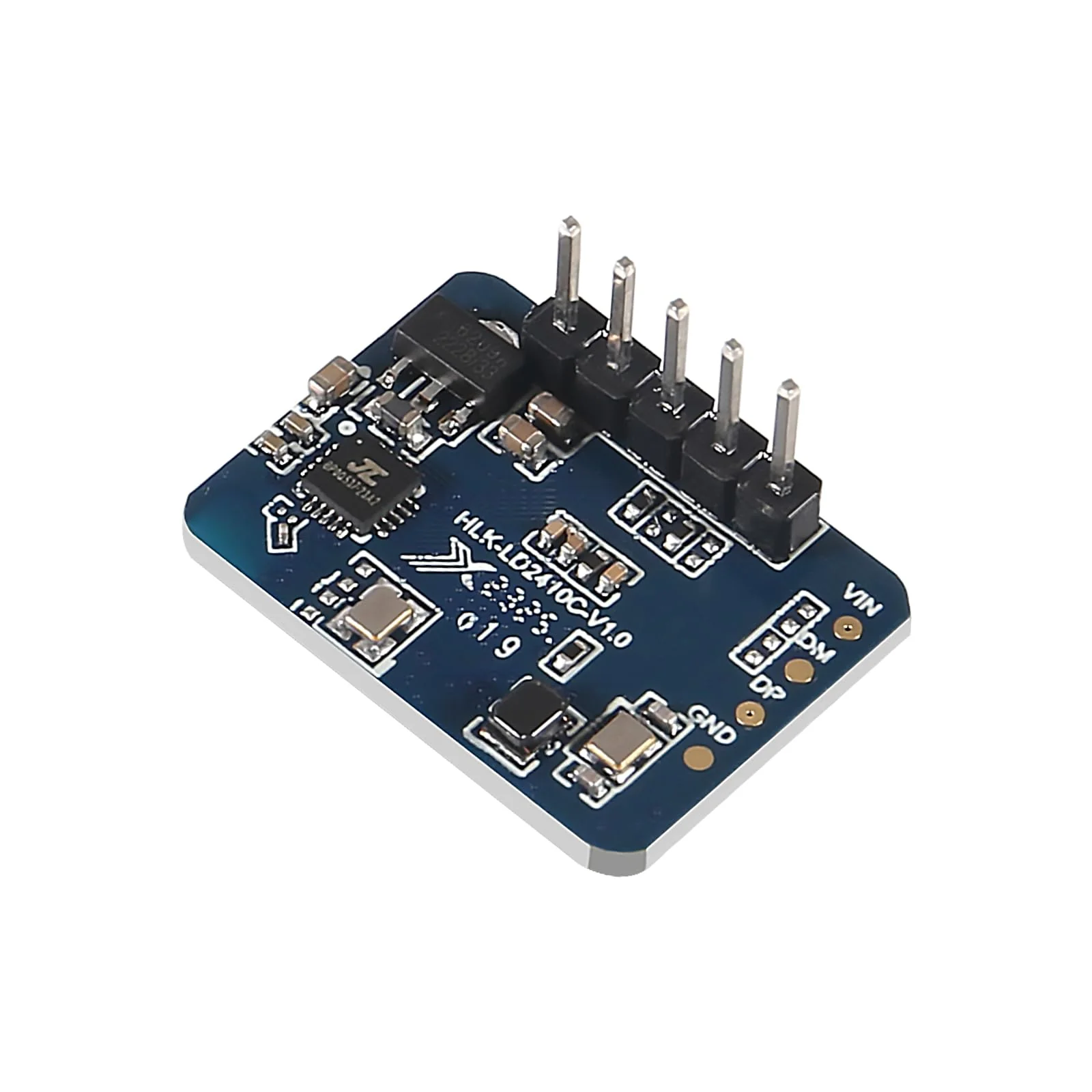

3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
Features: Frequency: 24GHz~24.25GHz Modulation Mode: FMCW Detection Distance: 0.75m~6m adjustable Detection Angle: ± 60° Power Supply: 5V Current: 79mA Output Serial Port Level: 3.3V Sweep Bandwidth: 250MHz Range Resolution 0.75m Ambient Temperature: - 40℃~+85℃ Data Format: serial port ASCII output/high and low level 3.3V&0V Module Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin) The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm Interface Type: RX, serial port receiving TX, serial transmission OUT, inductive output high level GND, power ground VCC, power supply input (5V voltage)
Product Features
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees.
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
Features: Frequency: 24GHz~24.25GHz Modulation Mode: FMCW Detection Distance: 0.75m~6m adjustable Detection Angle: ± 60° Power Supply: 5V Current: 79mA Output Serial Port Level: 3.3V Sweep Bandwidth: 250MHz Range Resolution 0.75m Ambient Temperature: - 40℃~+85℃ Data Format: serial port ASCII output/high and low level 3.3V&0V Module Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin) The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm Interface Type: RX, serial port receiving TX, serial transmission OUT, inductive output high level GND, power ground VCC, power supply input (5V voltage)
Product Features
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees.
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
