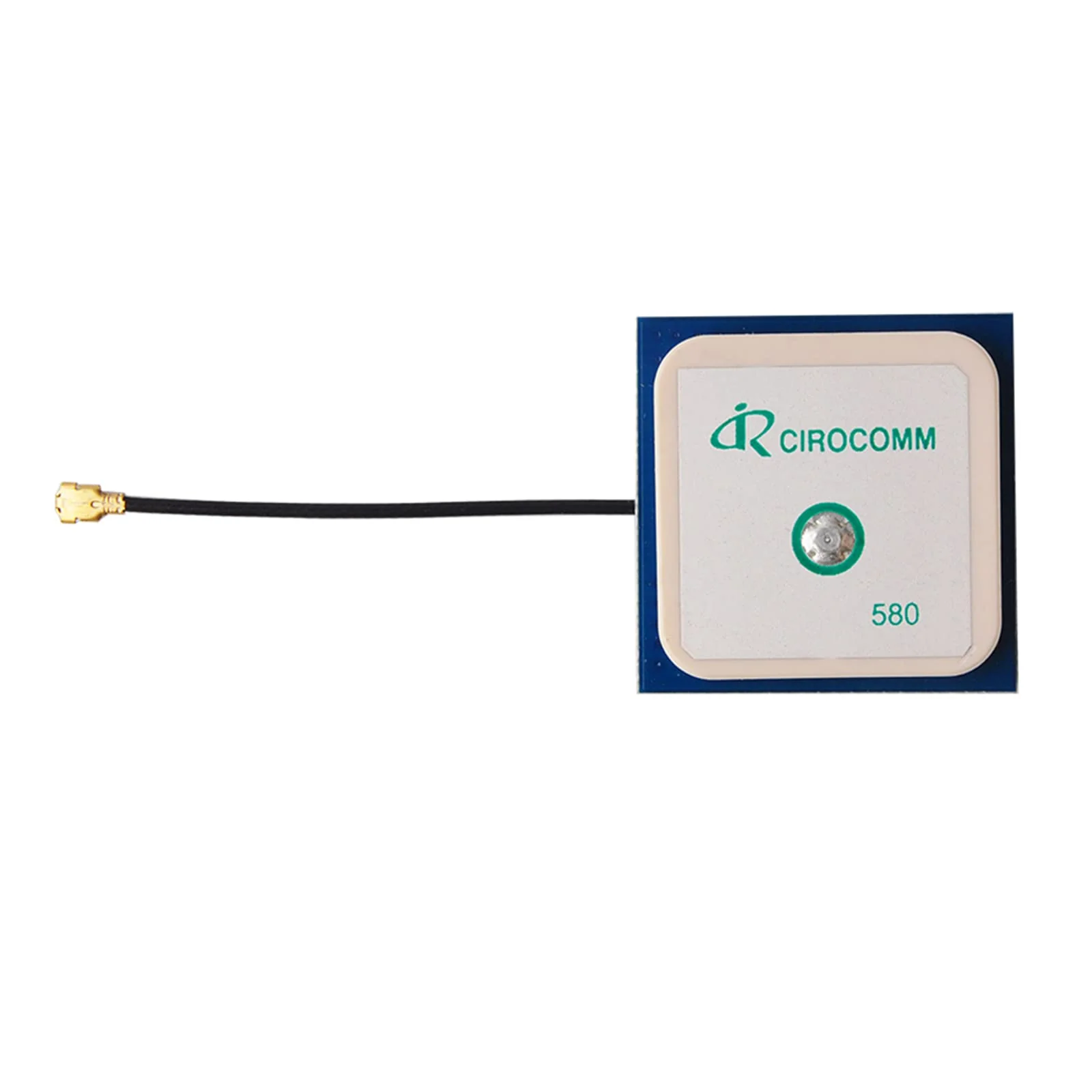

32db High Gain Cirocomm 5cm Active GPS Antenna Ceramic Antenna IPEX Antenna 25x25x5mm Geekstory
32db High Gain Cirocomm 5cm Active GPS Antenna Ceramic Antenna IPEX Antenna 25x25x5mm Geekstory

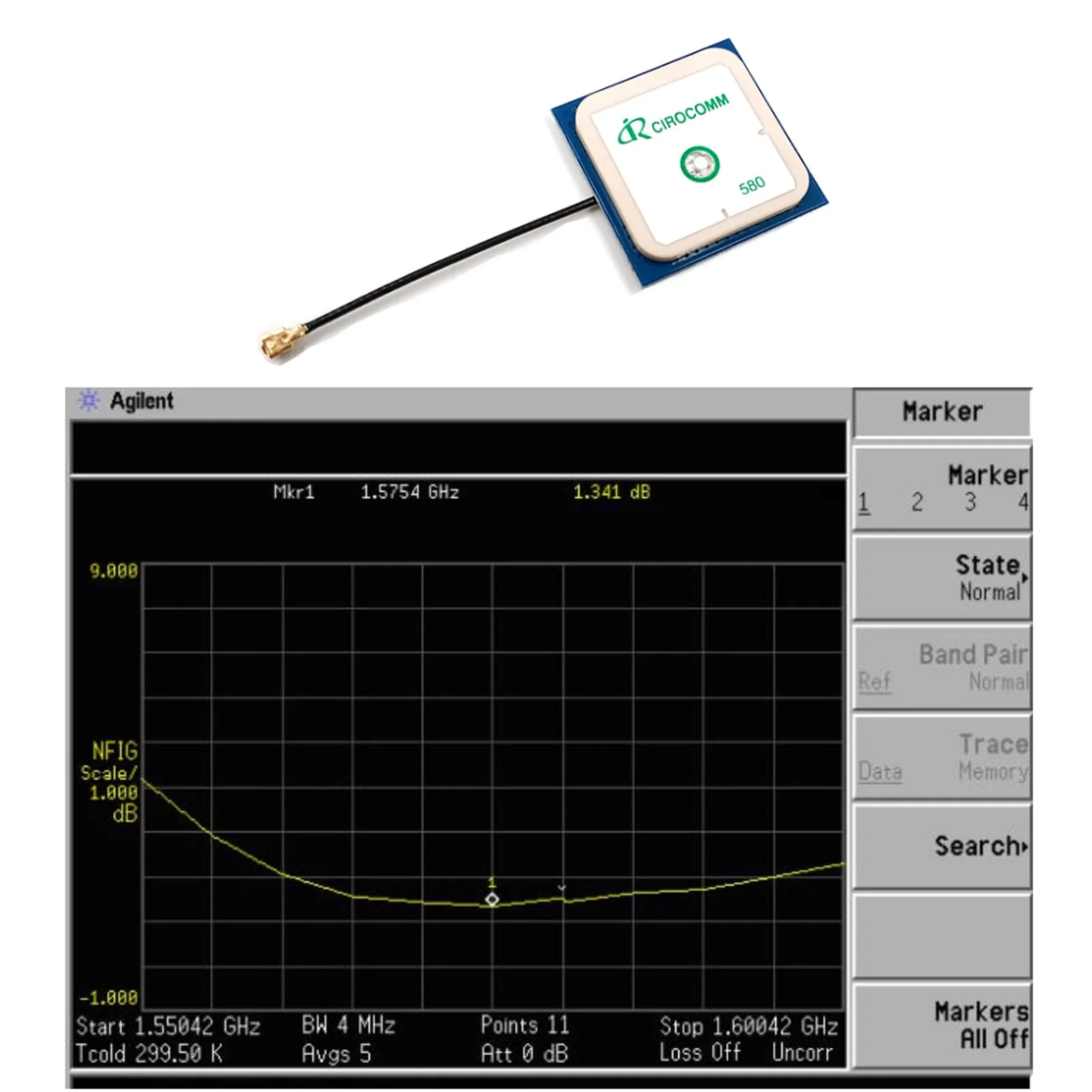

Description: Center Frequency: 1575.42MHZ VSWR: 2:1 Bandwidth: ±30 MHz Impedance: 50Ω Highest gain : > 3dBic Based on 7 × 7cm Gain Range : > -4dBic at -90 ° <0 <+90 ° Antenna polarization: RHCP Amplifier: Amplifier gain: 28dB Noise Figure: 1.5dB Filter band attenuation 7dB Min f0 + /-20MHz 20dB Min f0 + /-50MHz 30dB Min f0 + /-100MHz Output VSWR: <2.0 DC voltage DC: 3V --- 5V Power: 10mA Connector type: IPEX Line color: black Antenna:25252mm Product size:28285mm Environment: Operating Temperature: -40 degree ~ +85 degree Waterproof test Humidity: 95% ~ 100% RH Package Included: 1 X 32db GPS Antenna
Product Features
- With Center Frequency 1575.42MHZ
- IPEX Connector
- DC 3V - 5V voltage, 10mA power
- Built-in ceramic active antenna
- If you need any gps module, please confirm it with me by message
