1.3 Inch OLED I2C Display Module Binghe 3 Pieces 1.3 Inch LED OLED Display I2C IIC OLED Display with 1106 Chip 128 x 64 Pixel I2C Screen Display Module with Blue Character Compatible with
1.3 Inch OLED I2C Display Module Binghe 3 Pieces 1.3 Inch LED OLED Display I2C IIC OLED Display with 1106 Chip 128 x 64 Pixel I2C Screen Display Module with Blue Character Compatible with

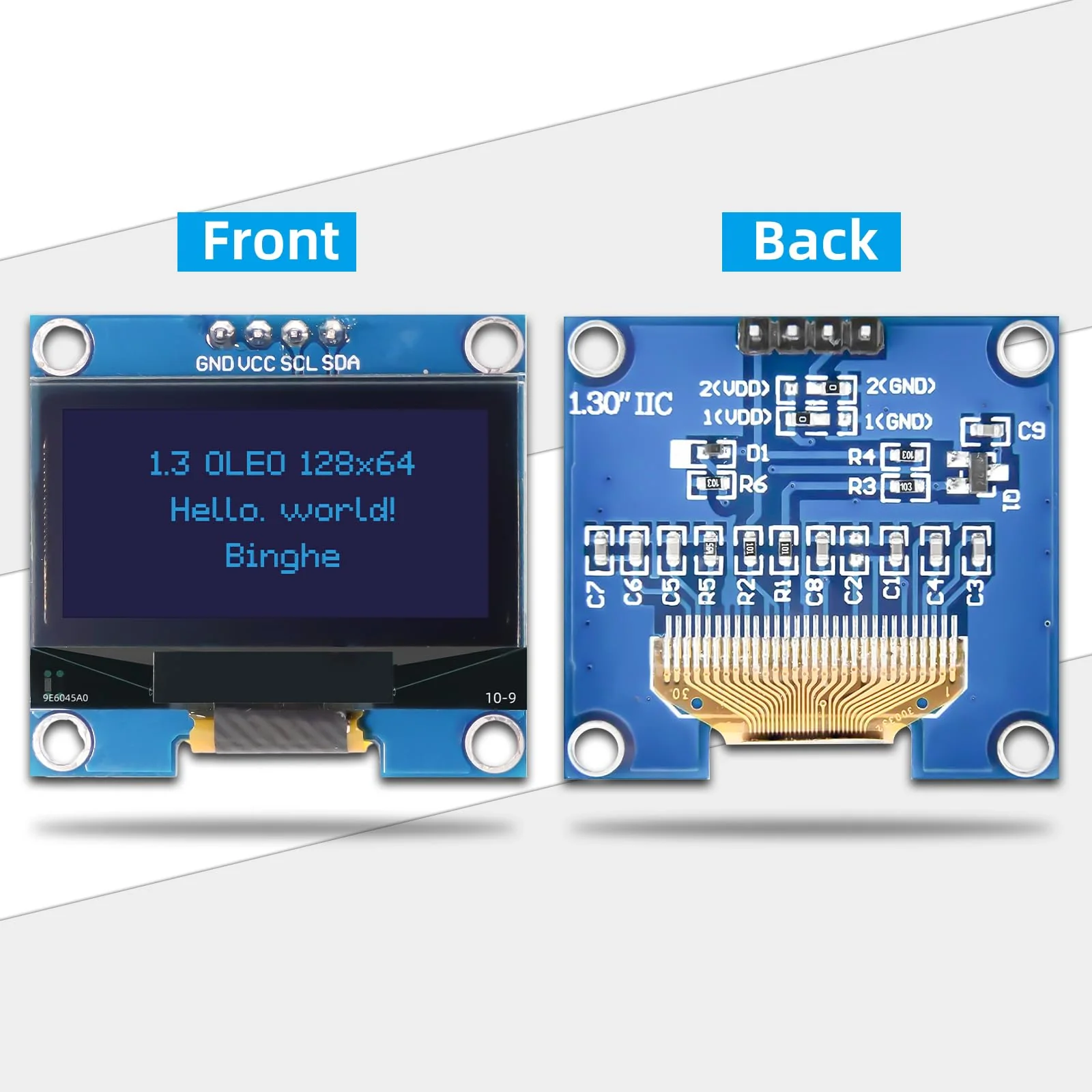

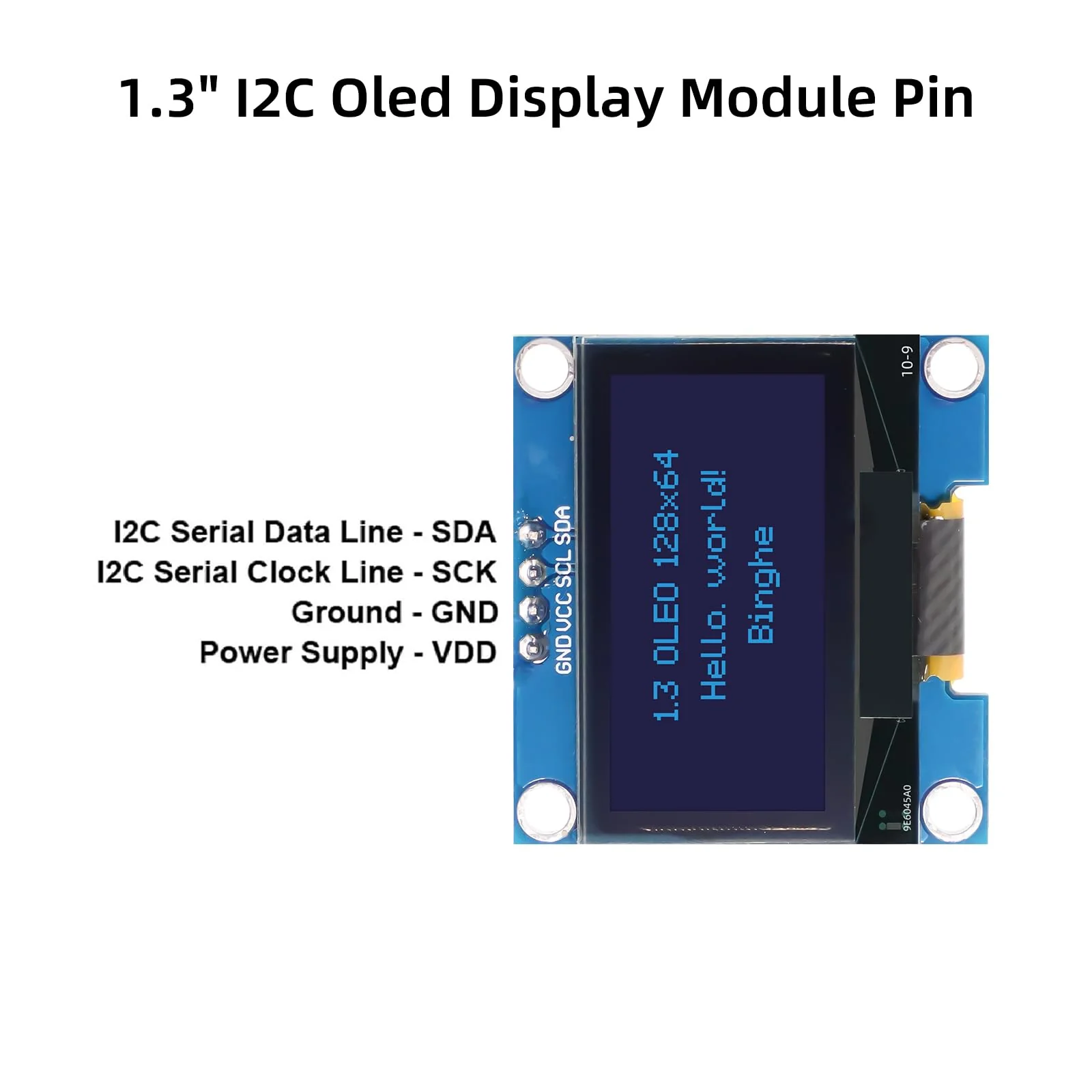

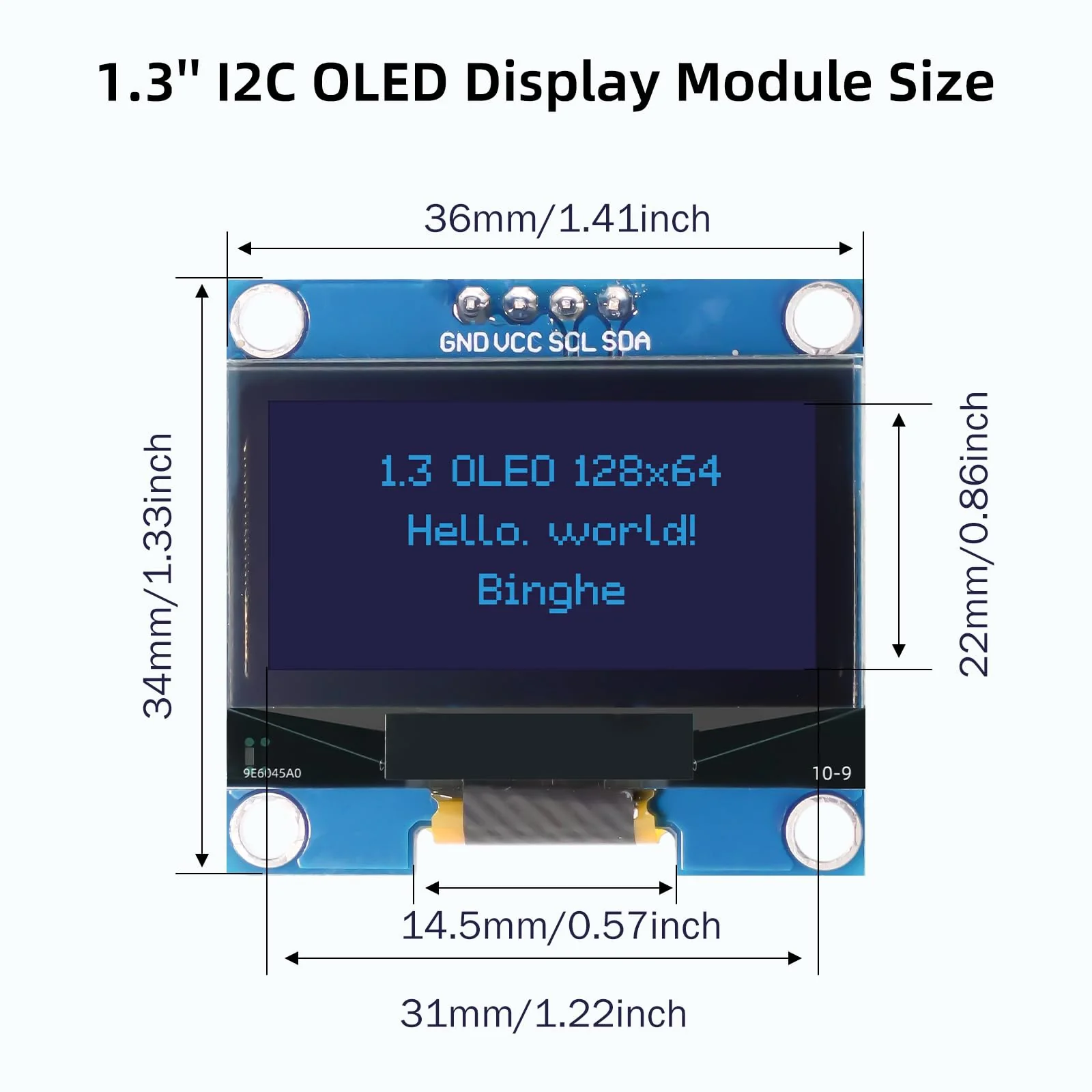

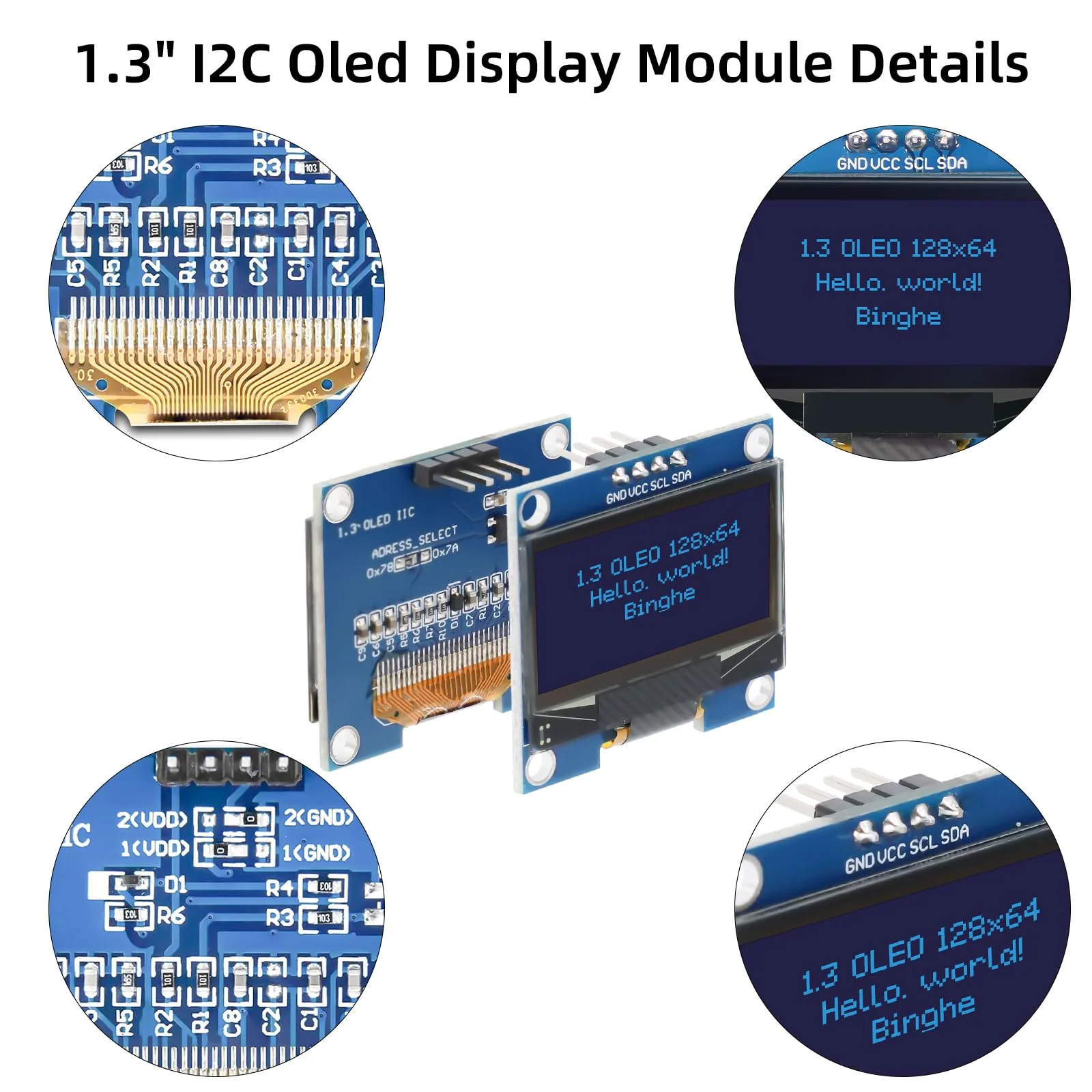

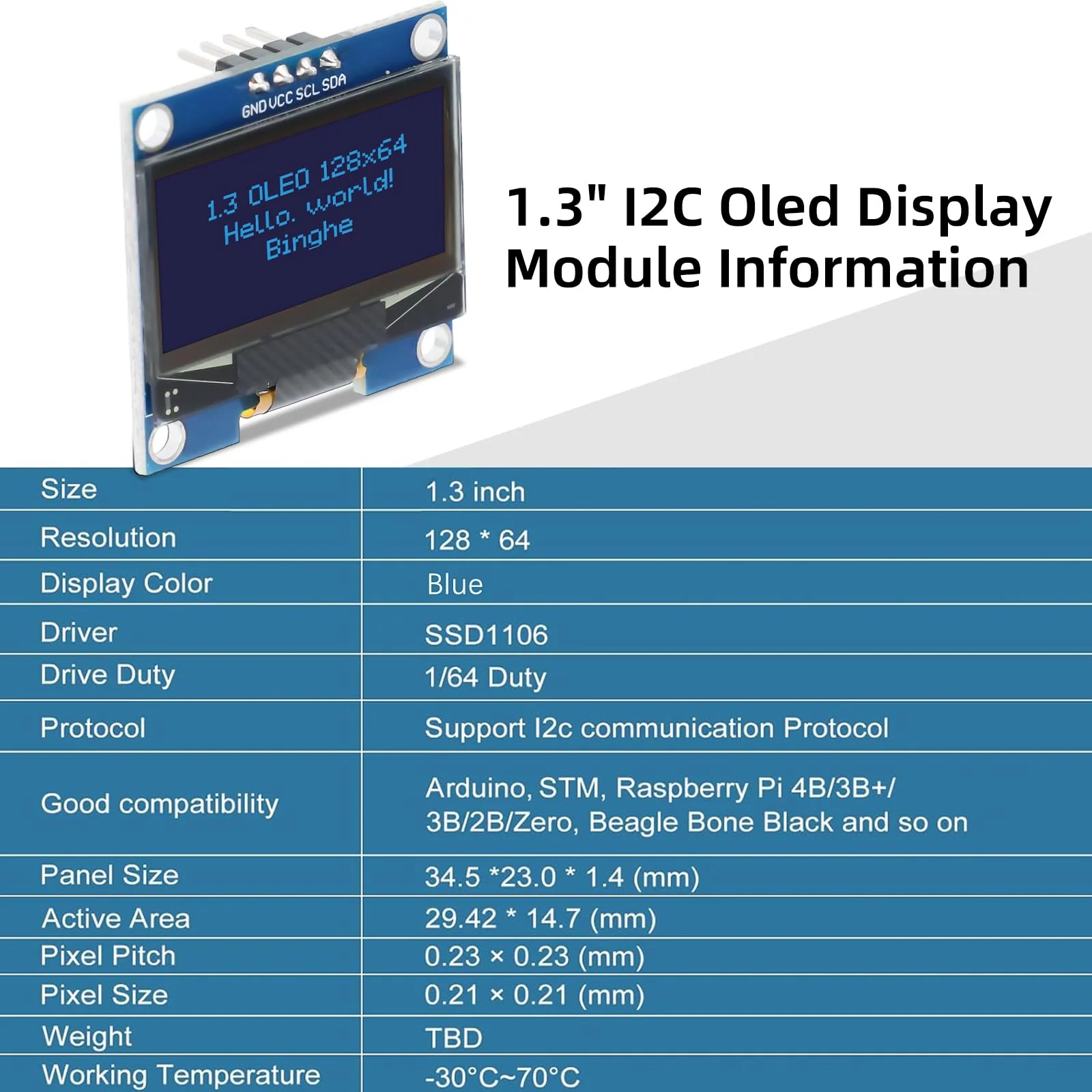

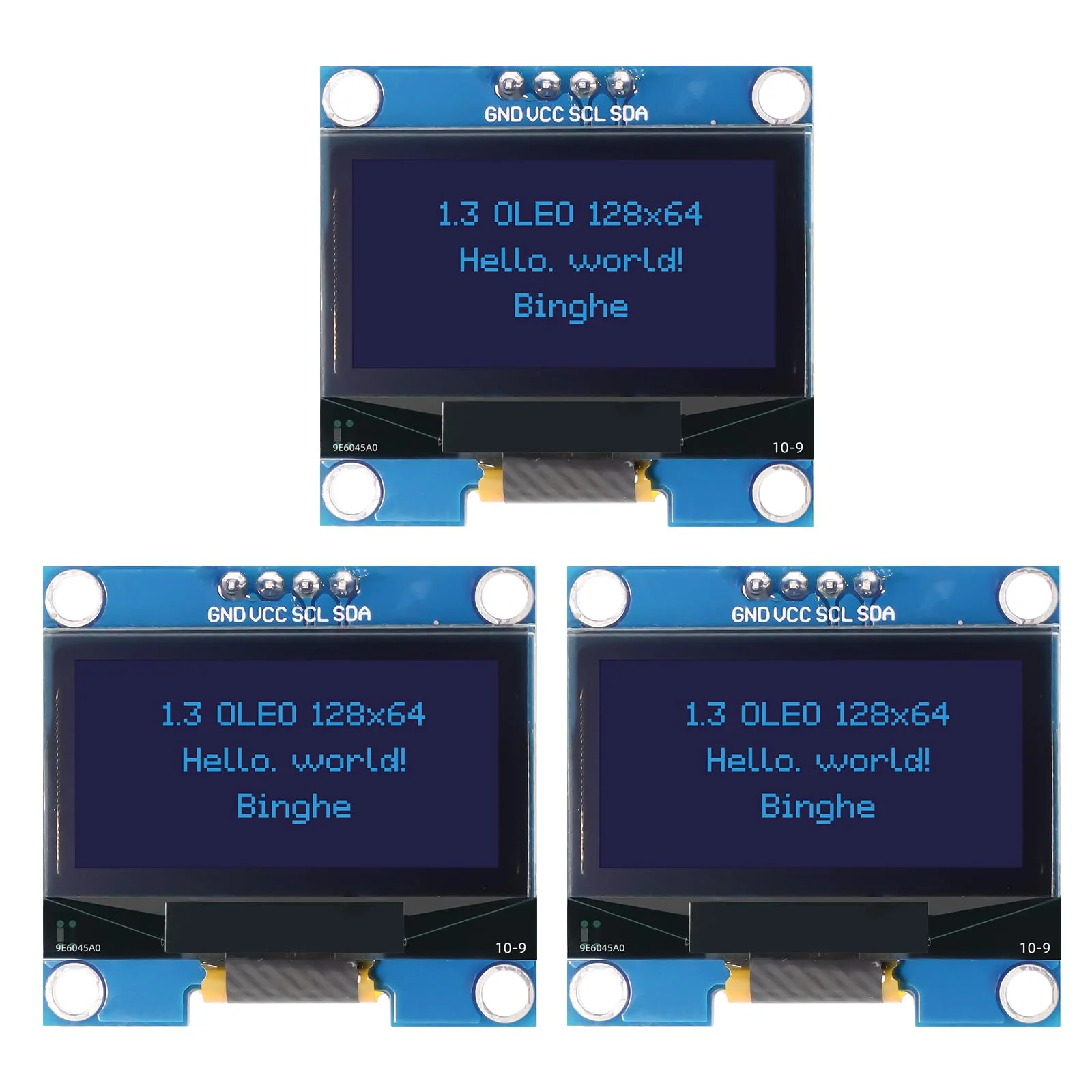

1.3 inch OLED display with 1106 chip I2C IIC128 x 64 pixel module, blue writing. Specification: Display colour: blue. Screen size: 1.3 inches. Screen Type: OLED Driver IC: 1106. Resolution: 128 x 64 (pixels). Module interface: I2C interface, 4pin Active area: 29.42 x 14.7 mm. Module PCB size: 33.7 x 35.5 mm. Visible angle: >160°. Operating temperature: -20℃~60℃. Storage temperature: -30℃~70℃. Operating voltage: 3.3 V ~ 5 V. Voltage: DC 3V-5V. Pixel size: 0.21 mm x 0.21 mm. Pixel pitch: 0.23 mm x 0.23 mm. Display mode: passive matrix. Low power consumption: <11 mA. Operating temperature: -20 to 70°C. Backlight: OLED self-illuminating, no backlight. IIC Pin Definition: GND: Power supply ground. VCC: Power supply + (DC 3.3 to 5V). SCL: clock line. SDA: Data Line How do I need to connect? GND: DC negative. VCC: DC positive. SCL: Serial clock input SDA: Serial data input Package includes: 3 x 1.3 inch OLED display with blue drawing module.
Product Features
- 1.3 inch OLED screen: the self-luminous OLED display only consumes power when the pixels light up, no backlight, extremely low power consumption.
- High-resolution display: 128 x 64 pixels high-resolution screen with high contrast and wide viewing angle, 1.3 inch OLED display for clear view of small fonts and detailed graphics.

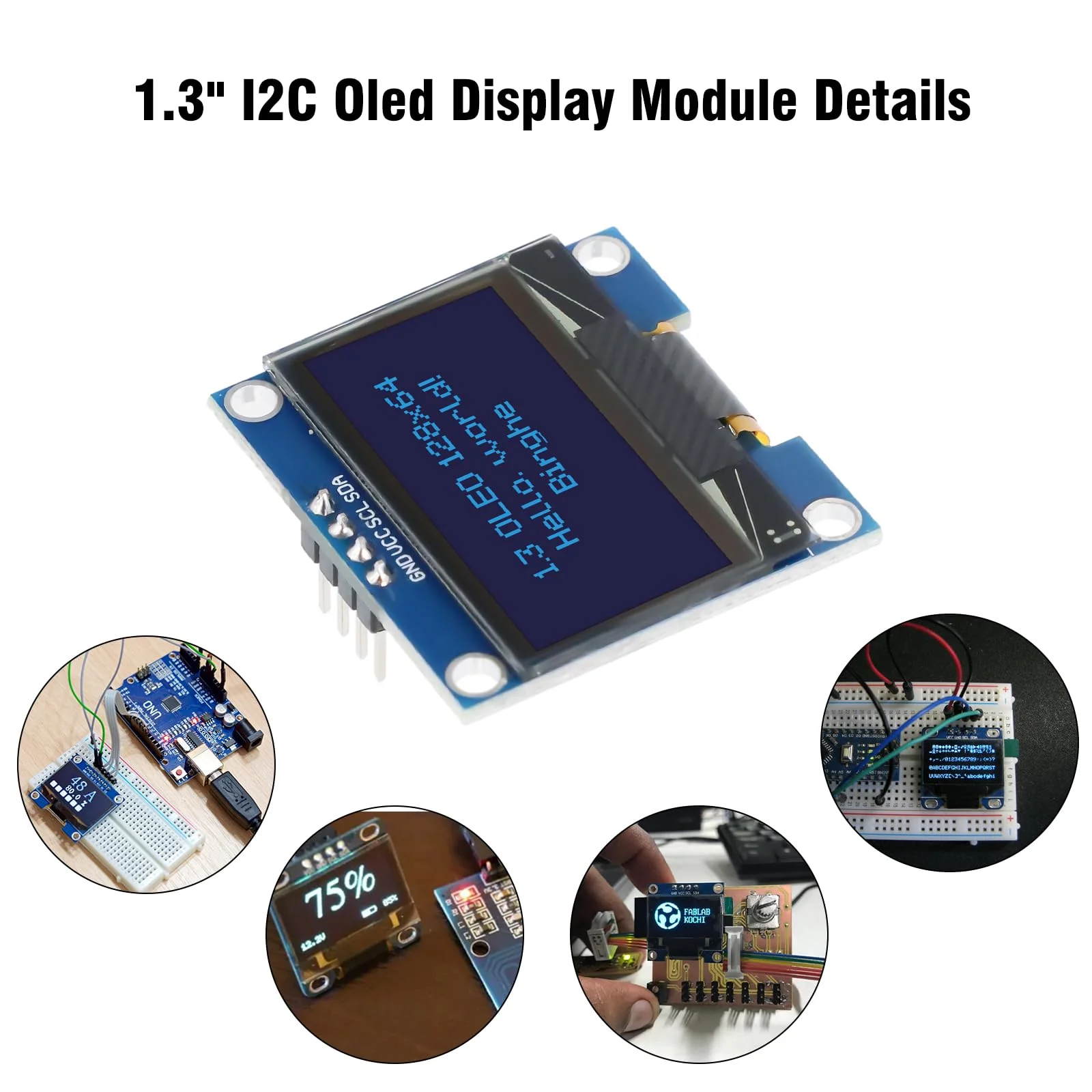

- Easy integration: supports the I2C IIC communication protocol with only 4 pins (VCC, GND, SCL, SDA) I2C IIC OLED display for easy connection to Arduino, Rasp-Pi and ESP32 boards.
- High response speed: suitable for displaying dynamic content, OLED screens respond quickly and without ghosting, ideal for applications that require a quick response.
- SH1106 chip: Equipped with a SH1106 driver chip that supports a voltage input of 3 V to 5 V, it offers stable and reliable performance and supports various development platforms.
